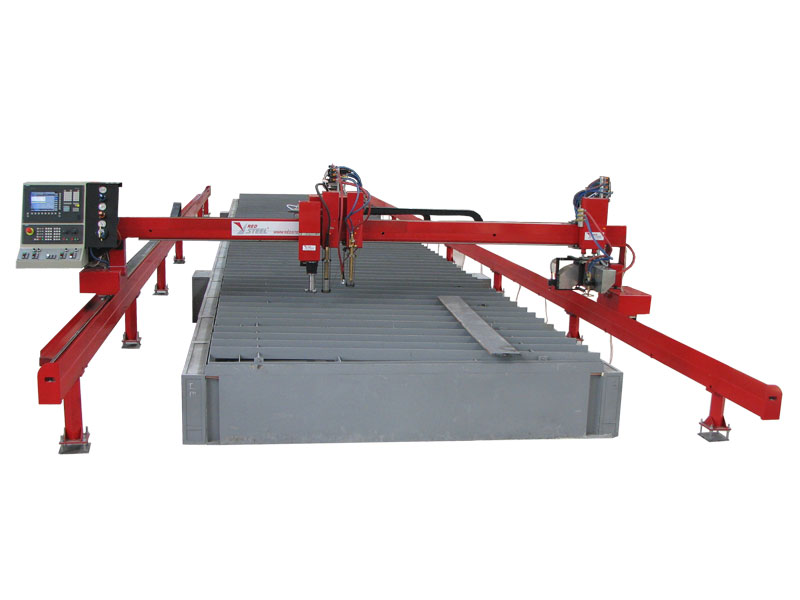

Gantry Series (CM-DD)
Technical Specifications
- Bilateral drive of the cross beam allows high dynamics of motion, which is especially suitable for plasma cutting
- Option for installation of all types of cutting heads (vertical cutting head, bevel head, marking head and triple torch head)
- Option for cutting with several vertical heads at the same time
- Option for automated (programmed) activation of each one of the cutting heads along the X axis
- Option for automated arrangement of the vertical cutting heads at certain positions along the X axis and simultaneous driving and cutting along the Y axis
- The CNC allows utilization of a capacity sensor for automatic height control of the torch and height control through measuring the voltage of the plasma arch
- Option for plasma arch power reduction in accordance with changes in the torch's speed of motion (with a sudden change of direction of motion)
- Option for bevel head for cutting in manual and automatic modes along an arbitrary contour at an angle from 0 о to 45 о
- High precision of the final product eliminates the need for mechanical treatment before welding
- Specialized CAD/CAM systems from the Vintech RCAM OEM family for true shape nesting, NC programming and creation of technical documentation, geared towards the technical specifications of the machine (including the bevel head, single torch head, and triple torch head):
-
- Vintech RCAM ОЕМ – for true shape nesting, NC programming and documentation creation
- Vintech RCAM-Pro OEM - for true shape nesting, NC programming and documentation creation, with expanded functional capabilities
| Parameter | Value |
| Working area size
|
|
| - along the X axis
|
from 1.50 m to 4 m |
| - along the Y axis
|
from 3 m to 18 m
|
| Cutting method
|
oxy-propane and plasma
|
| Cutting heads types
|
vertical head
single torch bevel head triple torch bevel head marking head etc. |
| Number of cutting devices
|
up to 4
|
| Vertical motion
|
140 mm |
| Vertical oxy-propane cutting thickness
|
up to 300 mm |
| Vertical plasma cutting thickness
|
up to 100 mm (depending on the plasma)
|
| Bevel cutting thickness - oxy-propane or plasma
|
up to 60 mm |
| Power supply along the X and Y axes
|
rack and pinion M=1.5mm |
| Number of power supplies along the Y axis
|
2 |
| Feedback along the X and Y axes
|
encoder inside the engine
|
| Positioning accuracy over 6 x 2 m working area
|
±0.35 mm |
| Repeatability of positioning of the torch
|
±0.05 mm |
| Speed of motion along the axes
|
up to 30 m/min |
| Fume suction system table - separated in 1m-long segments along the X axis; with pneumatic
switching across the segments
|
capacity 8 000 m 2/hour |
